Description
Power input: 240V AC, 50/60Hz.
Dimmer Levels: 0 to 4
Maximum Supportive Load – 7.5KW (32A).
Incandescent lamp/Resistive Load Per Channel:1800W
LED Load:200 W or 6 Nos(whichever is higher)
Inductive Load:800W
Typical standby power: <0.8W.
Operating distance from Wi-Fi router: upto 30 meters*. (depending upon router and its placement).
No of Channels: 3 (2+1)
No. of Relay Channels: 2
Capacitive Dimming Channels: 1

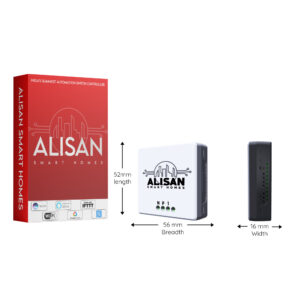

Dimensions: 103x52x16mm
Communication Wi-Fi: Connects to 2.4 GHz, Wi-Fi 802.11 b/g/n
Surge Protection : 2.5KV(Tested Upto 4KV)
Inbuilt Fuse for extra safety
3-Stage Filter Circuit for Noise Suppression for Improving Endurance in Noisy Environment.
DISCLAIMER: Do not connect multiple fans to same dimming channel*
